設備人性化上的優勢： 機器注重人性化設計，接液盤無需工具徒手即可拆卸。日后需要更換易損件的部件（例如灌裝槍等），均采用了方便拆卸的設計采用可編輯控制器（PLC）、觸摸屏、稱重儀表進行操作控制，使用調節方便。用戶可自由切換全自動和手動控制兩種操作模式，針對不同規格產品的參數記憶功能，在觸摸屏上選擇桶型參數、灌裝量，操作簡單直觀，同時顯示當前時間、運行狀態、累計產量等。主體為不銹鋼環保外框，鋼化玻璃門；所有閥門、接口的密封件均采用聚四氟乙烯，使用溫度-190～250℃，可滿足驟冷驟熱，或冷熱交替的復雜操作環境。在各管路連接方式上，米多采用快裝連接，自帶清洗程序，方便拆卸清洗。

The advantages of equipment humanization:

The machine pays attention to humanized design, and the drip tray can be disassembled without tools. The parts that need to be replaced in the future (such as filling heads, etc.) are designed to be easily disassembled. Editable controllers (PLC), touch screens, and weighing meters are used for operation and control, which is easy to use and adjust. Users can freely switch between automatic and manual operation modes. For the parameter memory function of products with different specifications, the drum parameters and filling volume can be selected on the touch screen. The operation is simple and intuitive, and the current time, running status, cumulative output, etc. . The main body is a stainless steel environmental protection frame and a tempered glass door; all valves and interface seals are made of polytetrafluoroethylene, and the operating temperature is -190～250℃, which can meet the complex operating environment of sudden cooling and heating, or alternating cold and heat. In the connection mode of each pipeline, Mido adopts quick installation connection and comes with a cleaning program for easy disassembly and cleaning.

方案上的優勢：

每臺灌裝機的單桶重量在灌裝后立即通過二維碼標簽進行關聯，在每條線的不同產品進行匯流交叉輸送后通過匯流輸送線商標印貼一起機前面的視覺相機進行再次讀取信息完成商標打印。保證了在極端情況下（系統故障斷電，人工干預等）的數據準確性，相比通過計數來實現數據關聯在技術原理上擁有一定的先進性、可靠性和容災性。

Advantages of the scheme:

The weight of a single drum of each filling machine is immediately associated with the QR code label after filling. After the different products of each line are cross-transported, they are re-read by the visual camera on the front of the machine through the confluence conveyor line. Get the information to complete the trademark printing. It guarantees the accuracy of data under any extreme conditions (system failure and power failure, manual intervention, etc.). Compared with data association through counting, it has absolute advancement, reliability and disaster tolerance in technical principles.

信息化管理系統：

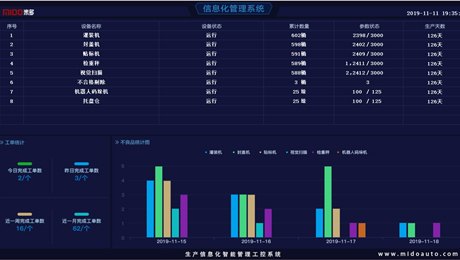

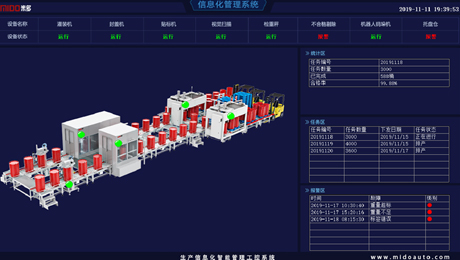

灌裝線配備的是全功能信息化智能管理系統，并且在DSC控制室設置有真機1:1動態顯示，不僅可以觀察每臺機器運行情況，還能直觀的統計產量、訂單完成量，待完成量、故障率等生產過程中的重要數據。

Information Management System:

The filling line is equipped with a full-function informational intelligent management system, and a real machine 1:1 dynamic display is set in the DSC control room. Not only can you observe the operation of each machine, but also intuitively count the output and order completion. Important data in the production process such as completion volume and failure rate.

The company's technical advantages:

Whether it is PLC program or information software, Mido is developed by its own team of engineers, rather than software outsourcing by many small companies or adopting industry common software models. Independent development has a higher degree of autonomy, especially in response to the individual needs of users in the later use process, which can provide timely and personalized development that meets the needs of users.
