▼主要特點 / Main features：

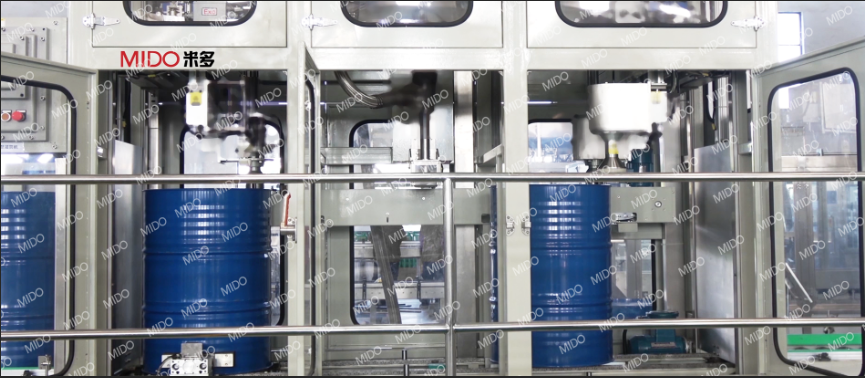

自動定位開蓋-自動灌裝-自動上蓋緊蓋, 應用于50-300kg的液體桶包裝而設計的智能化包裝系統，灌裝主機部分采用不銹鋼環保外框，可視窗，自動移門，灌裝時為封閉式；整條線自動完成進桶、移門開、關，自動識別桶口、自動對準桶口、自動開蓋、自動灌裝、灌裝結束自動旋蓋。

本機采用可編程控制器（PLC）進行控制，觸摸屏操作，具有操作方便，生產效率高，適用范圍廣等特點；本機電氣控制部分則由PLC可編程控制器，變頻調速器等組成，控制能力強，自動化程度高，采用特殊裝置，無桶不灌裝，對不準桶口不灌裝等功能，避免了物料的浪費和污染，使機器的機電一體化 得到了很好的表現。

▼產品功能 / Main features：

灌裝時分大小流量分時二次灌裝，保證灌裝速度和精度，灌裝時灌裝頭插入桶口進行液位上灌裝。每批次物料灌裝結束后管道內剩余的物料通過吹掃進入灌裝容器內，待第二次灌裝時桶內的物料繼續使用。獨特的灌裝堵頭固定方式確保在控制灌裝頭開合的氣缸上安裝有檢測開關，灌裝頭完全關閉前，槍頭不提升至桶外，避免物料噴灑至桶外。灌裝頭額外設計有接料盤，灌裝結束后，接料盤伸出，防止灌裝頭滴落液體污染包裝物和輸送線體。

稱重系統采用高精度稱重儀表、確保灌裝精度的同時增加結構和運營的穩定性，此外該系統具有防腐蝕、防過載保護裝置。稱重系統采用高精度稱重儀表、確保灌裝精度的同時增加結構和運營的穩定性，此外該系統具有防腐蝕、防過載保護裝置。灌裝槍頭有頂壓桶面的過載保護。具備觸碰桶口邊緣而導致偏差的保護，在不影響計量的前提下可繼續灌裝，當影響計量的數值超過設定值時，會有報警保護，可選擇繼續灌裝或人工干預。氣管以及下料頭密封件等均采用聚四氟乙烯質。灌裝閥所有需清潔部分可以拆開清洗，且所有的清洗工作都很簡單。

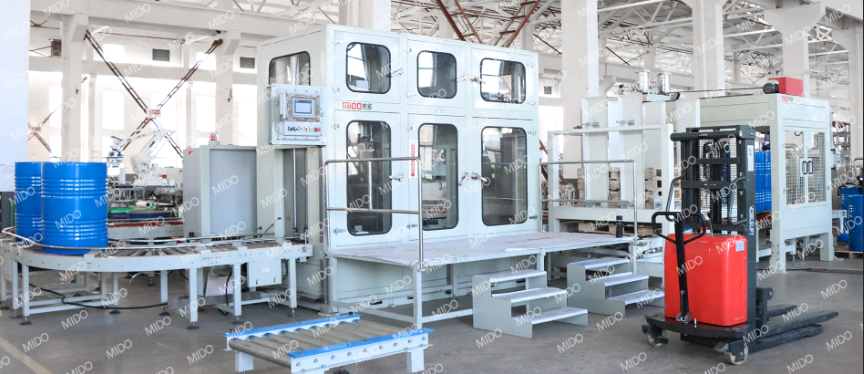

（設備外觀會因定制功能或技術升級而有所不同，以實物為準。）

▼Describe:

This machine is an intelligent packaging system specially designed for the packaging of liquid drums of 50-300kg. The main machine part of the filling adopts a stainless steel environmental protection frame, with windows and automatic sliding doors. It is closed when filling; the whole line automatically completes the drum. , The sliding door opens andcloses, automatically recognizes the drum mouth, automatically aligns the drum mouth, automatically opens the cap, automatically fills, and automatically caps off at the end of the filling. This machine adopts programmable logic controller (PLC) for control and touch screen operation. It has the characteristics of convenient operation, high production efficiency, and wide application range; thelectrical control part of this machine is composed of PLC programmable controller, frequency converter, etc. Strong control ability, high degree of automation, special devices, no drums, no filling, and no drum mouth is not correct, avoiding material waste and pollution, so that the mechanical and electrical integration of themachine has a perfect performance.

The filling time is divided into large and small flow rates and time-sharing secondary filling to ensure the filling speed and accuracy. During filling, the filling head is inserted into the drum mouth to fill at the liquid level. After the filling of each batch of materials, the remaining materials in the pipeline are purged into the filling container, and the materials in the drum will continue to be used during the second filling. The unique fixing method of the filling plug ensures that a detection switch is installed on the cylinder that controls the opening and closingof the filling head. Before the filling head is completely closed, the gun head will not be lifted out of the barrel to avoid material spraying out of the barrel. The filling head is additionally designed withreceiving tray. After the filling is completed, the receiving tray extends to prevent liquid from the filling head from contaminating the packaging and the conveying line.

The weighing system uses high-precision weighing instruments and Toledo weighing sensors to ensure filling accuracy while increasing the stability of structure and operation. In addition, the system has anti-corrosion and anti-overload protection devices. The sensor is IP68 protected, and the sensor is easy to install,disassemble and repair. The accuracy of the weighing system is controlled by a high-precision weighing instrument, and the accuracy of small flows can be fine-tuned.

The filling head has overload protection against the drum surface. With protection against deviation caused by touching the edge of the drum mouth, filling can be continued without affecting the measurement. When the value that affects the measurement exceeds the set value, there will be alarm protection, and you can choose to continue filling or manual intervention.The air pipe and the sealing parts of the discharging head are all made of PTFE.All parts of the filling valve that need to be cleaned can be disassembled and cleaned, and all cleaning tasks are simple.

▼主要技術參數 / Main technical parameters

     ? 防爆類型：Exd ii BT4 / Explosion-proof type: Exd ii BT4

1. ? 輸送形式：雙排鏈 / Conveying form: double-row chain bearing

2. ? 最小稱量值：50g(0.05Kg) / Minimum weighing value: 50g (0.05Kg)

3. ? 工位功能：開蓋、灌裝、旋蓋 / Station function: opening, filling, capping

4. ? 灌裝速度：≥40桶/小時（具體取決于來料的粘度、流量、壓力等因素

5. ? 灌裝精度：±200g / Filling accuracy: ±200g

6. ? 適用桶型：200L塑料桶 / Applicable drum type: 200L plastic drum

7. ? 灌裝接觸材質：SUS316 / Filling contact material: SUS316

8. ? 主體材質：SUS304 / Body material: SUS304

9. ? 密封墊片：聚四氟乙烯 / Gasket: PTFE

10. ? 泵體：用戶配備（供方灌裝設備控制泵的運行）/

11. Pump body: equipped by the user (the supplier's filling equipment controls the operation of the pump)

12. ? 電源功率：380V/50Hz；4KW

13. ? 承受重量：500.00Kg / Weight: 500.00Kg

14. ? 灌裝范圍：100.00～300.00Kg / Filling range: 100.00～300.00Kg

15. ? 灌裝類型：液面上灌裝 / Filling type: filling on liquid surface
